Logic Apps for Azure Resource

Jacob_baek 2023. 4. 17. 22:02

Logic Apps 에서 Azure Resourece Manager 사용시 어떻게 사용할지 좀 애매한 부분들이 있어 이를 정리하고자 한다.

Prerequisite

먼저 logic Apps 로 control할 resource에 대한 기본정보를 확인한다.
아래와 같이 특정 provider에 control할 resource의 resourceType을 확인한다.

jacob@laptop:~ $ az provider list --query "[?namespace == 'Microsoft.ContainerService'].resourceTypes[].resourceType" -o json
[
  "ManagedClusters/eventGridFilters",
  "containerServices",
  "fleetMemberships",
  "fleets",
  "fleets/members",
  "locations",
  "locations/notifyNetworkSecurityPerimeterUpdatesAvailable",
  "locations/operationresults",
  "locations/operations",
  "locations/orchestrators",
  "locations/osOptions",
  "managedClusters",
  "managedclustersnapshots",
  "operations",
  "snapshots",
  "locations/trustedAccessRoles"
]

이후 해당 resourceType에서 사용가능한 apiVersion을 확인한다.

jacob@laptop:~ $ az provider list --query "[?namespace == 'Microsoft.ContainerService'].resourceTypes[] | [?resourceType == 'managedClusters'].apiVersions" -o json
[
  [
    "2023-03-02-preview",
    "2023-03-01",
    "2023-02-02-preview",
    "2023-02-01",
    "2023-01-02-preview",
    "2023-01-01",
    "2022-11-02-preview",
    "2022-11-01",
    "2022-10-02-preview",
    "2022-09-02-preview",
    "2022-09-01",
    "2022-08-03-preview",
    "2022-08-02-preview",
    "2022-08-01",
    "2022-07-02-preview",
    "2022-07-01",
    "2022-06-02-preview",
    "2022-06-01",
    "2022-05-02-preview",
    "2022-04-02-preview",
    "2022-04-01",
    "2022-03-02-preview",
    "2022-03-01",
    "2022-02-02-preview",
    "2022-02-01",
    "2022-01-02-preview",
    "2022-01-01",
    "2021-11-01-preview",
    "2021-10-01",
    "2021-09-01",
    "2021-08-01",
    "2021-07-01",
    "2021-05-01",
    "2021-03-01",
    "2021-02-01",
    "2020-12-01",
    "2020-11-01",
    "2020-09-01",
    "2020-07-01",
    "2020-06-01",
    "2020-04-01",
    "2020-03-01",
    "2020-02-01",
    "2020-01-01",
    "2019-11-01",
    "2019-10-01",
    "2019-08-01",
    "2019-06-01",
    "2019-04-01",
    "2019-02-01",
    "2018-08-01-preview",
    "2018-03-31",
    "2017-08-31"
  ]
]

How to write

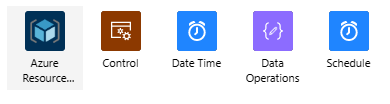

아래 operation들을 확인하고 아래중 Azure Resource Manager를 사용하여 resource control을 수행한다.
(참고로 azure resource manager를 이용하여 request body를 추가하여 좀더 구체화된 control을 수행할 수 있다.)

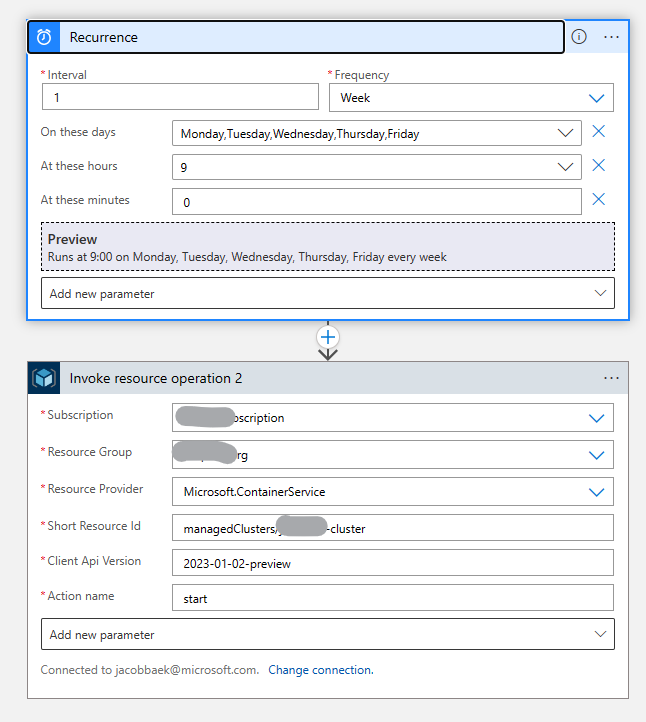

실제 Logic Apps의 designer를 구성한 화면이다.

위 designer를 code 기반으로 표현하면 다음과 같다.

{
    "definition": {
        "$schema": "https://schema.management.azure.com/providers/Microsoft.Logic/schemas/2016-06-01/workflowdefinition.json#",
        "actions": {
            "Invoke_resource_operation_2": {
                "inputs": {
                    "host": {
                        "connection": {
                            "name": "@parameters('$connections')['arm']['connectionId']"
                        }
                    },
                    "method": "post",
                    "path": "/subscriptions/@{encodeURIComponent('11111111-1111-1111-1111-111111111111')}/resourcegroups/@{encodeURIComponent('xxxxxx-rg')}/providers/@{encodeURIComponent('Microsoft.ContainerService')}/@{encodeURIComponent('managedClusters/xxxxxx-cluster')}/@{encodeURIComponent('start')}",
                    "queries": {
                        "x-ms-api-version": "2023-01-02-preview"
                    }
                },
                "runAfter": {},
                "type": "ApiConnection"
            }
        },
        "contentVersion": "1.0.0.0",
        "outputs": {},
        "parameters": {
            "$connections": {
                "defaultValue": {},
                "type": "Object"
            }
        },
        "triggers": {
            "Recurrence": {
                "evaluatedRecurrence": {
                    "frequency": "Week",
                    "interval": 1,
                    "schedule": {
                        "hours": [
                            "9"
                        ],
                        "minutes": [
                            0
                        ],
                        "weekDays": [
                            "Monday",
                            "Tuesday",
                            "Wednesday",
                            "Thursday",
                            "Friday"
                        ]
                    }
                },
                "recurrence": {
                    "frequency": "Week",
                    "interval": 1,
                    "schedule": {
                        "hours": [
                            "9"
                        ],
                        "minutes": [
                            0
                        ],
                        "weekDays": [
                            "Monday",
                            "Tuesday",
                            "Wednesday",
                            "Thursday",
                            "Friday"
                        ]
                    }
                },
                "type": "Recurrence"
            }
        }
    },
    "parameters": {
        "$connections": {
            "value": {
                "arm": {
                    "connectionId": "/subscriptions/11111111-1111-1111-1111-111111111111/resourceGroups/xxxxxx-rg/providers/Microsoft.Web/connections/arm-1",
                    "connectionName": "arm-1",
                    "id": "/subscriptions/11111111-1111-1111-1111-111111111111/providers/Microsoft.Web/locations/koreacentral/managedApis/arm"
                }
            }
        }
    }
}

Disclaim
Microsoft의 공식적인 문서가 아닌 개인의 경험을 바탕으로 작성된 내용임을 알립니다.
This is not official document published by Microsoft. Note that this document is based on personal experience.
